Producing lamella tube sedimentation sheets
What Is a Lamella Tube?
A the system, also known as a tube settler or inclined plate clarifier, is an innovative component used in sedimentation tanks to improve solid-liquid separation. By using multiple inclined tubes arranged in a parallel formation, the surface area for sedimentation increases dramatically—reducing the settling distance of particles and optimizing the clarification process.
Lamella Tubes are widely applied in wastewater treatment, industrial process water systems, and drinking water purification plants. Their design ensures faster sedimentation with less space required than traditional clarification methods.

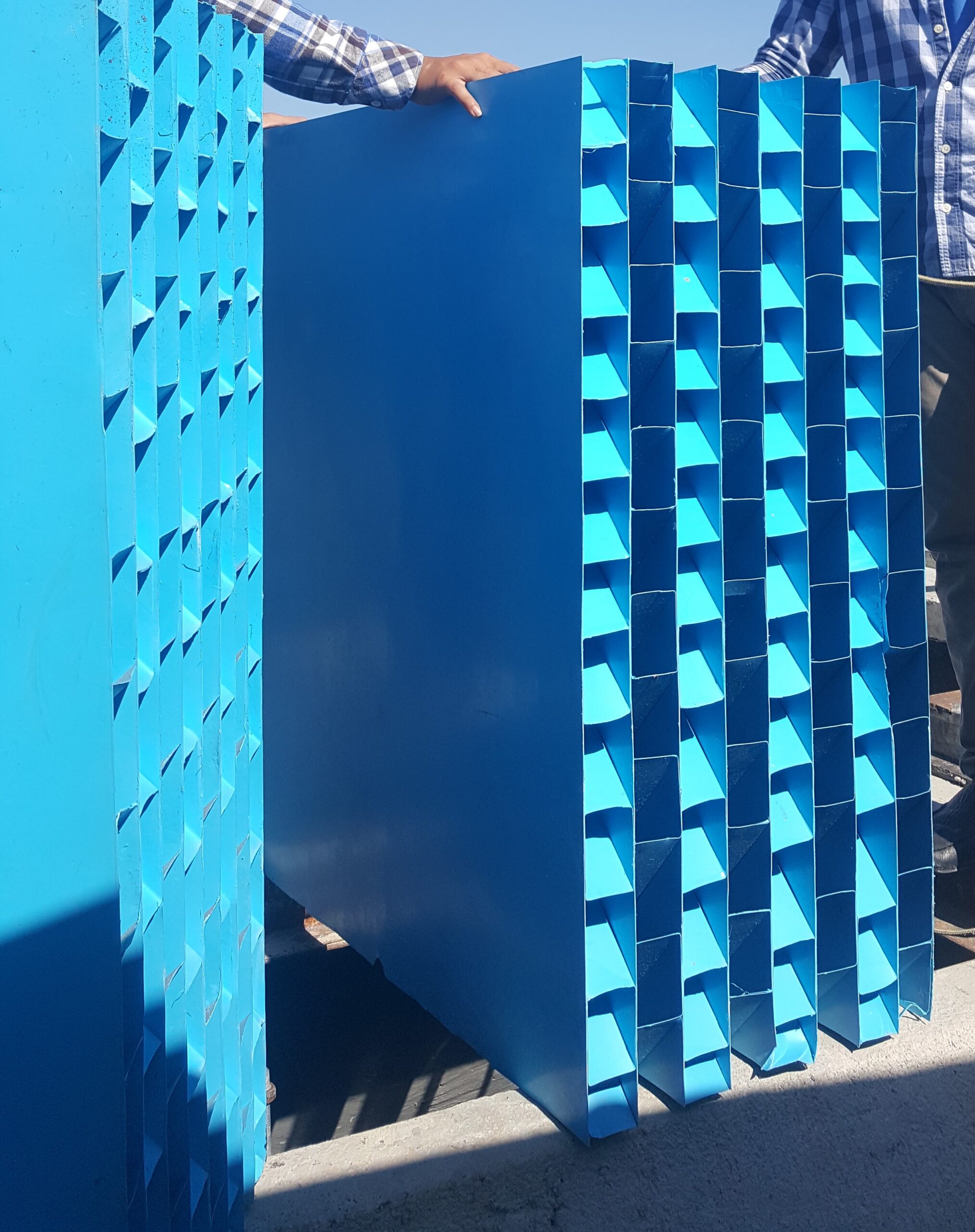

Technical Specifications of Our Lamella Tubes
-
Material: Rigid PVC or PP (customizable)
-
Tube Size: 1000mm x 1000mm (or based on request)
-
Tube Shape: Hexagonal honeycomb
-
Angle of Inclination: 60°
-
Thickness: 0.8–1.2mm
-
Color Options: Blue, White, Black, Grey
These specifications are tailored to provide high mechanical strength, corrosion resistance, and long service life even under harsh operational environments.
How Lamella Tubes Improve Clarification Efficiency
the tube module increase the effective settling area without enlarging the tank’s footprint. The inclined tubes reduce the settling distance of particles, allowing them to slide down quickly due to gravity. This process enhances the settling rate up to 5–10 times more than conventional clarification tanks.
Advantages include:
-
Compact design – space-saving installation
-
Cost-effective compared to large clarifiers
-
Faster sedimentation rate
-
Easy retrofitting into existing tanks
-
Low maintenance, long life span
Applications of Lamella Tubes Across Industries
Lamella Tubes are utilized in various water treatment and separation systems, including:
-
Municipal wastewater treatment
-
Drinking water purification
-
Stormwater management
-
Industrial effluent sedimentation
-
Aquaculture sediment control systems
-
Cooling tower basin pre-treatment
The versatility of Lamella Tube settlers makes them an ideal choice for both large-scale and decentralized treatment plants.
Lamella Tube systems are also ideal for decentralized treatment plants in rural and remote areas where space and infrastructure are limited. Their compact structure makes them easy to transport and install without requiring heavy civil works. Additionally, Lamella Tube settlers support sustainable water management by improving sedimentation without chemicals. This makes them suitable for eco-sensitive zones and environmentally regulated industries. Whether in municipal, agricultural, or aquaculture applications, Lamella Tube modules deliver reliable clarification with minimal operational costs. Combined with low maintenance and long service life, they are a trusted solution in modern water treatment technology.

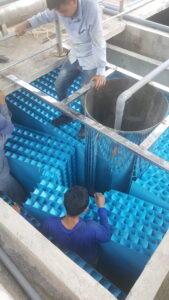

Installation & Maintenance Guidelines
Installation is simple and does not require specialized tools. The tubes are supplied in modular blocks and can be assembled on-site. Maintenance includes occasional flushing or rinsing to remove accumulated sludge or biofilm. The PVC/PP construction ensures resistance to corrosion and biological fouling.
Recommended steps for installation:
-
Clean the basin or tank before setup.
-
Position supporting brackets or frames.
-
Insert Lamella Tube modules firmly into position.
-
Seal edges to prevent flow bypass.
Why Choose Our Lamella Tubes?
Our Lamella Tubes are manufactured under strict quality control standards with CE and ISO certifications. Each batch is tested for structural integrity, chemical resistance, and hydraulic performance.
Key Benefits:
-
-
Direct manufacturing with cost efficiency
-
Customized sizing available upon request
-
Bulk order discounts
-
Fast delivery within Vietnam and worldwide
-
Expert support from our water treatment team
-
