Producing lamella water sedimentation sheets
, microbiological buffers, all kinds of machines in the water treatment industry … With a team of engineers and experienced workers in the field of the environment, we will advise you on the latest products and technologies to save maximum cost of improvement. creating or constructing wastewater treatment works.

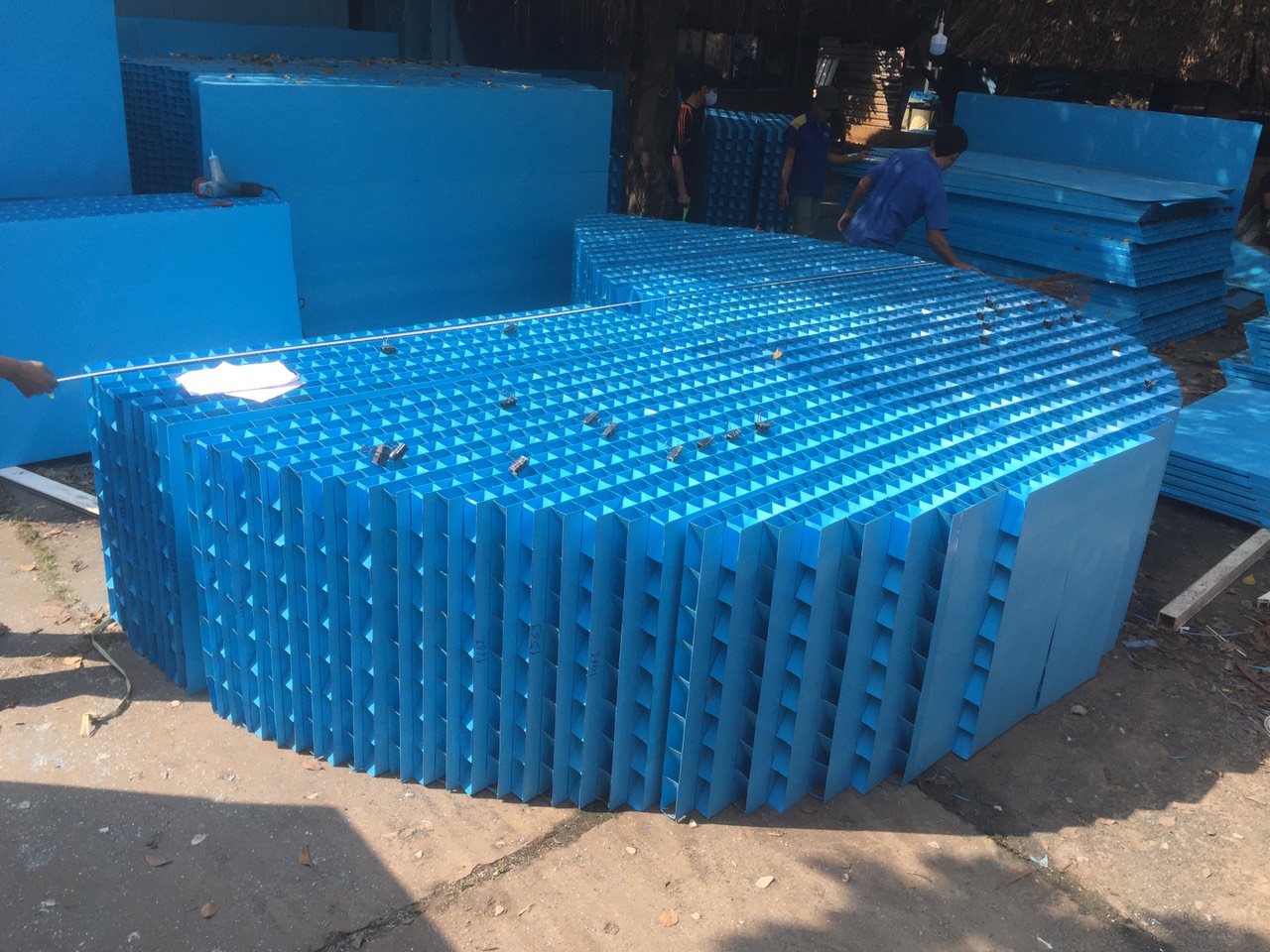

Lamella Water – High-Performance PVC Clarifier Plates
Lamella Water, also known as PVC inclined plate settlers, offers a compact and highly effective solution for improving sedimentation in water and wastewater treatment systems. With their modular design and lightweight structure, these plates significantly increase settling surface area while reducing installation and maintenance costs.
Durable PVC Material for Long-Term Use
Lamella plates are constructed from industrial-grade PVC, designed to resist corrosion, UV radiation, and chemical degradation. This ensures long-lasting performance in various treatment environments, including municipal, industrial, and decentralized water systems.
-
Material: UV-stabilized, non-corrosive PVC
-
Lifespan: Up to 15 years
-
Resistant to acid, alkali, and sunlight exposure
Technical Specifications of Lamella Water Plates
Each plate is designed to optimize flow dynamics and particle settling in constrained spaces:
-
Diameter options: Ø 40 mm or 54 mm
-
Plate thickness: 0.6 – 0.8 mm
-
Weight: 40 – 45 kg per assembled unit
-
Inclination angle: 60° ± 1°
-
Module structure: Hexagonal or rectangular, customizable on demand
These specifications allow the system to handle high flow rates without increasing tank size or adding civil works.
Working Principle of Lamella Clarifiers
Lamella clarifiers function by allowing water to flow upwards through inclined channels. Suspended solids settle onto the surface of the plates and slide down into the sludge zone due to gravity. Clean water continues upward, collected through the top outlet for further treatment or reuse.
This technology reduces hydraulic retention time, typically requiring only 15–20 minutes to achieve clarity levels comparable to traditional sedimentation tanks.
Benefits of Using Lamella Water in Treatment Systems
Lamella Water plates are engineered to enhance both system performance and operational efficiency:
-
Increase sedimentation efficiency by up to 95%
-
Reduce turbidity of treated water to ≤ 2 NTU
-
Extend filtration cycles to 72+ hours
-
Minimize chemical consumption (PAC, alum, etc.)
-
Optimize existing tank space without expansion
-
Simple to clean and replace modules when needed
-
Ideal for upgrading older systems with minimal modification
By utilizing this modern solution, facility owners can double or even triple sedimentation capacity within the same footprint.
Specifications of the Plastic lamella water
| Material | Dimension (mm) |
Thickness (mm) |
Weight kg |
Color | angle of inclination |
| PVC | D40 | 0.6-0.8 | 40-45 | blue | 60 degree |
| PVC | D54 | 0.6-0.8 | 40-45 | blue | 61 degree |
Common Applications
Lamella Water systems are widely adopted in various sectors, including:
-
Drinking water plants
-
Industrial pre-treatment systems
-
Municipal wastewater treatment
-
Rainwater harvesting and sediment removal
-
Biological system enhancement (in combination with MBBR, Biochip)
Their adaptability makes them suitable for both new installations and retrofits.
Maintenance & Installation Advantages
Installation is fast due to the modular, lightweight nature of the plates. Maintenance is minimal, as there are no moving parts. Periodic rinsing or sludge discharge ensures consistent operation with limited downtime.
